How to Set-Up the Integration Based on Basic auth with Access Response Token

This documentation provides a comprehensive, step-by-step guide to understanding the setup process for Basic auth with Access Response Token. For example purposes, we have chosen "Sendpulse/Axosoft/Clientjoy" as our focus application.

Before moving ahead need to know that Pabbly Connect Supports the following types of authentications under the Basic Auth with Access Token authentication method.

1. OAuth 2.0 - Grant Type: Client Credential. (E.g. Sendpulse)
2. OAuth 2.0 - Grant Type: Password. (E.g. Axosoft)
3. Custom Access Token Generation via API. (E.g. Clientjoy)
(Some applications generate an access token using an API endpoint.)

• OAuth 2.0 - Grant Type: Client Credential:

App Name - Sendpulse
App Details and Auth Configuration:

In the above image, you can check that we have selected the auth type as Basic Auth (Access Response Token). As per the Sendpulse API docs, the grant type is Client credentials so we have set the parameter by passing the default value.

We followed the Sendpulse API docs for selecting the Auth type as Basic auth (Access Response Token). Learn more

You can find the Access Token path from the Access Token API response, you have to send a POST request to the Sendpulse access token URL.
i.e.

https://api.sendpulse.com/oauth/access_token

Access Token Response:

{
"access_token": "eyJ0eXAiOiJKXBfaWQiOgDBBdsgnUudGCvsDcgEog",
"token_type": "Bearer",
"expires_in": 3600
}

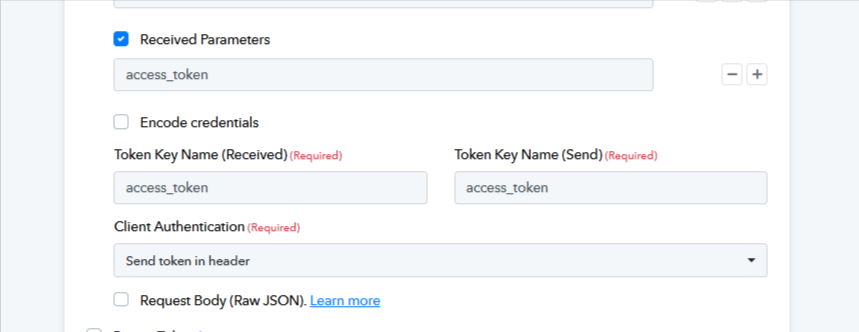

1. Token Key Name (Received): Enter a token key name that you want to receive from the access token JSON for further use in API request e.g. access_token.
2. Token Key Name (Send): Enter a token key name that you want to send for further use in an API request e.g. access_token.

• How to Configure Action Events:

Action - Add Subscriber
Type - Post

Action Frontend View:

• OAuth 2.0 - Grant Type: Password:

App Name - Axosoft
App Details and Auth Configuration.

You can follow these steps to build the app integration with a similar auth type.

In the above image, you can check that we have selected the auth type as Basic Auth (Access Response Token). As per the Axosoft API docs, the grant type is Password, so we have set the parameter by passing the default value.

We followed the Axosoft API docs for selecting the Auth type as Basic auth (Access Response Token). Learn more

You can find the Access Token path from the Access Token API response, you have to send a POST request to the Axosoft access token URL.
i.e. subdomain.axosoft.com/api/oauth2/token

Access Token Response:

{
"access_token" : "10101010-1010-1010-1010-101010101010",
"token_type" : "bearer",
"data" : {
"id" : 7,
"first_name" : "Cathy",
"last_name" : "O'Reilly (Dev)",
"email" : "[email protected]"
}
}

1. Token Key Name (Received): Enter a token key name that you want to receive from the access token JSON for further use in API request e.g. access_token.
2. Token Key Name (Send): Enter a token key name that you want to send for further use in an API request e.g. access_token.

Now, this access token will be passed in the header in each action and trigger automatically.

• How to Configure Action Event:

Action - Create Contact
Type - Post

Action Frontend View:

• Custom Access Token Generation via API:

  App Name - Clientjoy

In the above image, you can check that we have selected the auth type as Basic Auth (Access Response Token). As per the CLientjoy API docs, the request body type is JSON and the origin is passed in the header.


We followed the Clientjoy API docs for selecting the Auth type as Basic auth (Access Response Token). Learn more

You can find the Access Token path from the Access Token API response, you have to send a POST request to the Clientjoy access token URL.
i.e. https://api.clientjoy.io/v1/auth/login

Access Token Response:

[CODE]{

  "success": "register.user",

  "success_message": "Great going! Your account is created.",

  "status": "register.user",

  "message": "Great going! Your account is created.",

  "data": {

    "user": {

      "id": 5155,

      "first_name": "Jigar",

      "last_name": "Sompura",

      "name": "Jigar Sompura",

      "email": "[email protected]"

    },

    "token": "*****"

  }

}

[/CODE]

In the above Access token response "token" is at the nested JSON. So we need to input the path of the token as data==>token

1. Token Key Name (Received): Enter a token key name that you want to receive from the access token JSON for further use in API request e.g. access_token. In this case, Token Key Name (Received) is data==>token
2. Token Key Name (Send): Enter a token key name that you want to send for further use in an API request e.g. access_token.

Now, this access token will be passed in the header in each action and trigger automatically.

• How to Configure Action Event:

Action - Find Lead
Type - Get

Action Frontend View:

For further details, refer to this guide for creating new actions and triggers in your application. Learn more

Refer to the video below for instructions on creating your app with a similar authentication type: Learn more
